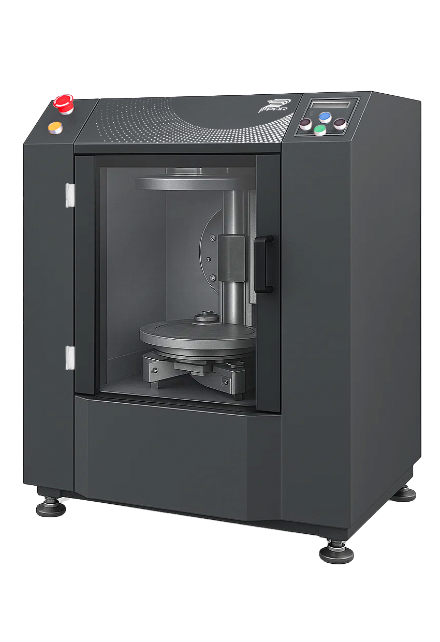

Planet AA Series

Automatic Gyro Mixer Machine

• Automatic clamping and de-clamping for faster, hands-free operation

• Centrally clamped containers - no adapters required

• Telescopic sliding bottom table for effortless loading and unloading

• Integrated loading shelf for added convenience

• Compatible with metal and plastic containers

• Dual-speed bi-axial gyroscopic rotation for complete, consistent mixing

• Manual container release in case of power failure during mixing

• User-friendly LCD console with messages, system status, and error diagnostics

• Transparent swing door for safe operation and easy monitoring

Specifications

Machine Type
High Speed Paint Mixer
Timer
0.5 to 9.5 minutes electronic timer
Mixing Capacity
20 Litre
Rating
Motor 1HP, Three Phase
RPM
1415
Input Power Supply
220v AC, Single Phase, 50/60 Hz
Max. Weight
40 Kkg
Min. Height
110 mm
Max. Height
445 mm
Max. Diameter
320mm
Machine Dimension HxWxD
H 1010 mm x W 835 mm x D 760 mm
Net Weight
235Kg
Gross Weight
270Kg
Note
Specification subject to change without prior notice

Related Products

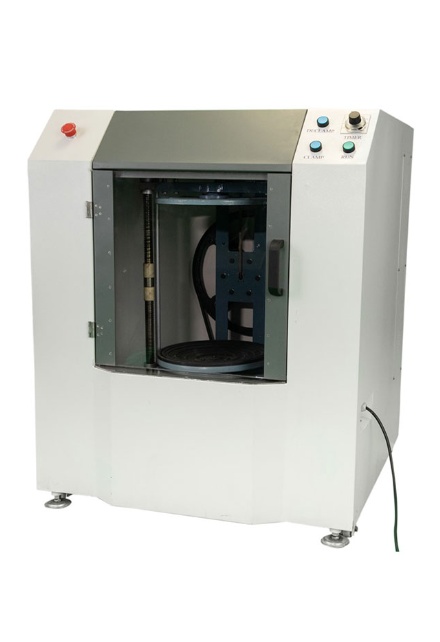

Planet AE
Planet AE
view

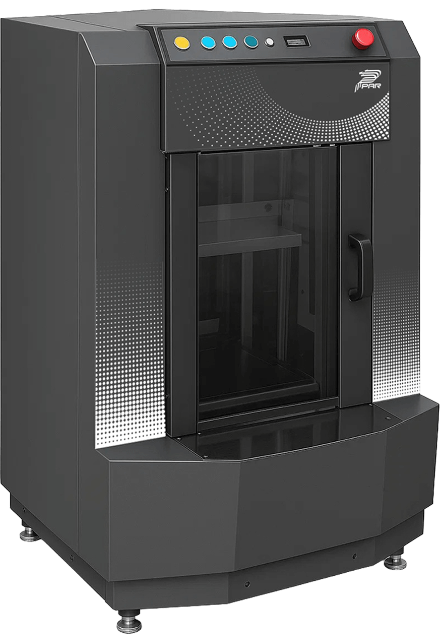

Planet VB
Planet VB
view

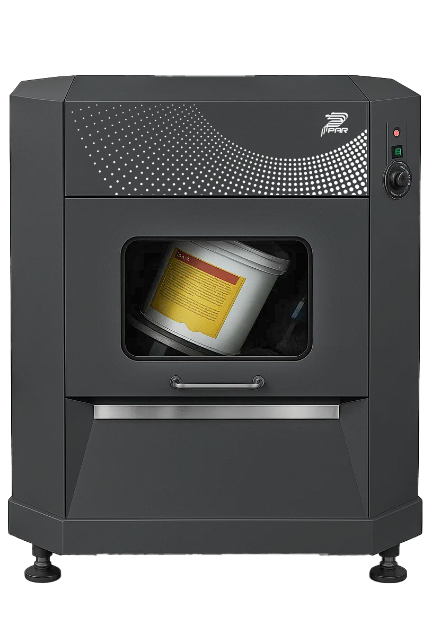

Planet MH
Planet MH
view

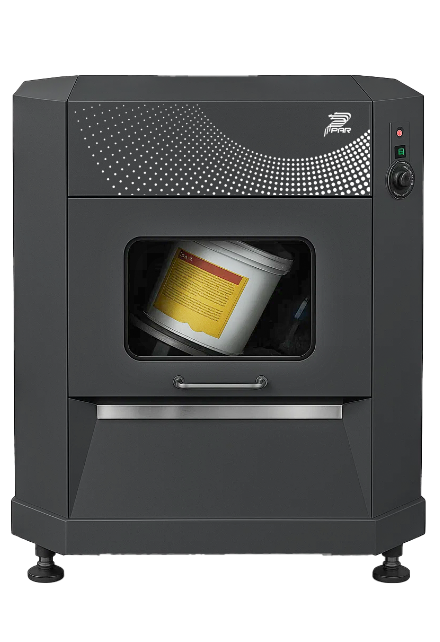

Planet M
